Patio Doors for Hurricane Season: What DP Rating Actually Means

Patio doors with a Design Pressure (DP) rating of 30 to 60 psf – the range tested for the OKNOPLAST HORIZON Lift and Slide Patio Door – are engineered to resist the structural wind loads typical of coastal residential construction. A DP rating measures structural, air infiltration, and water penetration performance under positive and negative pressure; it does not, by itself, indicate resistance to windborne debris impact. For homeowners, contractors, and architects specifying patio doors in storm-prone regions, this guide covers DP rating and impact-rating distinctions, uPVC and aluminum frame construction, threshold and hardware design, acoustic and thermal performance, ordering lead time, and the federal programs that may apply – before Atlantic hurricane season begins June 1.

Do Patio Doors Need Storm-Season Preparation?

Sliding and lift-and-slide patio door systems carry more glazed surface area than any other opening in a home’s envelope. That makes wind-pressure resistance and water-seal integrity, not glass strength alone, the primary engineering concern during hurricane season. Large-format glazing openings, common in modern patio door systems and sliding glass door installations, transfer proportionally higher wind loads to the frame, track, and locking hardware than a standard window of comparable height.

Structural DP ratings for patio doors and other fenestration products are established using the AAMA/WDMA/CSA 101/I.S.2/A440 test method, which measures air infiltration, water penetration, and structural load resistance under both positive and negative pressure. A door’s printed DP value reflects performance under this combined test – the same framework referenced by other US fenestration manufacturers publishing coastal product data.

Builders specifying patio door systems in coastal counties typically request a DP rating with margin above the local code minimum, since post-storm insurance inspections increasingly document the rated DP value shown on the manufacturer’s label rather than relying on a general description such as “hurricane resistant.”

What Does a DP Rating Measure on a Patio Door?

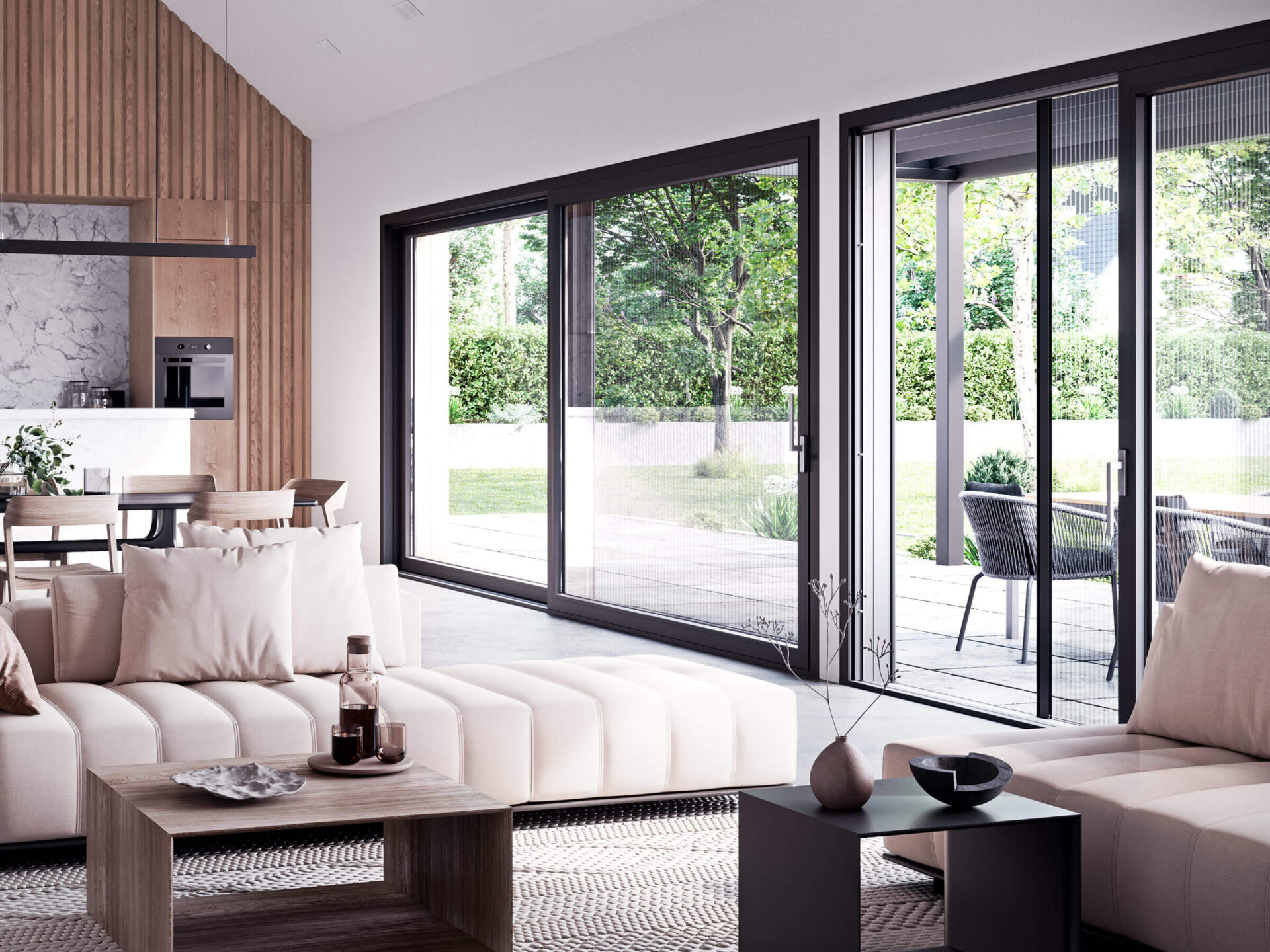

The COMPACT Patio Door carries a DP-50 rating and the HORIZON Lift and Slide Patio Door carries a DP rating of 30 to 60 psf depending on configuration – figures that describe structural wind-load resistance under the AAMA/WDMA/CSA 101/I.S.2/A440 test method, not resistance to flying debris.

Entity specifications for both uPVC systems:

• COMPACT Patio Door → DP rating → 50 psf
• COMPACT Patio Door → U-Factor → up to 0.17 BTU/hr·ft²·°F
• COMPACT Patio Door → Frame construction → six-chamber uPVC profile, 5½” depth
• HORIZON Lift and Slide Patio Door → DP rating → 30–60 psf
• HORIZON Lift and Slide Patio Door → U-Factor → 0.18–0.29 BTU/hr·ft²·°F
• HORIZON Lift and Slide Patio Door → Frame reinforcement → steel-reinforced frame, sash, and mullion profiles

Local building departments in coastal counties reference ASCE 7 wind speed maps and IBC/IRC wind-load provisions when establishing the minimum DP requirement for a given address – a builder or architect should confirm the required DP value for the specific site and exposure category before specifying either system.

Table 1 – DP Rating and Thermal Performance: COMPACT vs. HORIZON

*Tested or calculated values depending on construction type and element dimensions, per OKNOPLAST product documentation.

DP Rating vs. Impact Rating: What Wind-Load Ratings Actually Cover

A DP-50 or DP 30–60 rating confirms that a patio door resists the specified wind pressure, air infiltration, and water penetration limits without structural failure. It does not confirm that the glass will resist windborne debris – that requires separate large-missile impact testing under ASTM E1886 and E1996, and, within Florida’s High-Velocity Hurricane Zones (Miami-Dade and Broward counties), a Notice of Acceptance (NOA) number issued under the Florida Building Code.

COMPACT and HORIZON patio doors are DP-tested structural systems; they are not marketed as impact-rated or HVHZ-approved products. This distinction matters in practice: a homeowner or contractor in a High-Velocity Hurricane Zone, or any high-wind coastal county with a local impact-glazing requirement, should plan for supplemental storm protection – code-approved shutters, panels, or accordion systems – alongside a DP-rated patio door, or evaluate an impact-rated glazing product separately for that specific opening.

A DP-rated structural door, such as COMPACT or HORIZON, is tested for wind pressure, air infiltration, and water penetration under AAMA/WDMA/CSA 101/I.S.2/A440, with no requirement to resist a large-missile strike. An impact-rated door adds ASTM E1886/E1996 missile-impact testing on top of that structural rating. In HVHZ jurisdictions, it also requires an NOA number, which removes the need for temporary storm shutters or plywood panels on that opening. The two rating types answer different engineering questions. A product without published impact-test data should not be assumed to substitute for one that carries it.

uPVC Frame Construction: Steel Reinforcement and Structural Stability

The HORIZON Lift and Slide Patio Door integrates steel reinforcement within its uPVC frame, sash, and mullion profiles, while the COMPACT Patio Door relies on a six-chamber uPVC frame profile (5½” depth) and four-chamber sash profile (2¾” depth) without added steel – a construction difference that affects maximum opening size more directly than baseline storm performance at each door’s rated DP value.

In steel-reinforced uPVC patio door systems, galvanized or stainless steel inserts are factory-pressed into the load-bearing chambers of the frame, sash, and mullion profiles. The steel carries structural loads, including wind pressure and the dead load of large glazing units, while the uPVC exterior surface provides the thermal break and weather barrier. This is why the steel-reinforced HORIZON system supports significantly larger openings – up to 236 inches wide – than the non-reinforced COMPACT system, which tops out at 157 inches.

uPVC frame material itself is classified as highly impact-resistant per DIN 7748 and retains this property at low temperatures, per OKNOPLAST profile material data sheets – a material-level characteristic distinct from the assembled unit’s DP or impact-glazing rating, which depends on the complete frame, glass, and hardware system rather than the profile compound alone.

Aluminum Patio Doors as an Alternative: Aluview Standard and Premium

The Aluview Premium aluminum lift and slide patio door supports a maximum sash weight of up to 880 lbs on manual drive hardware – up to 1,540 lbs on automatic drive – using a fiberglass-reinforced thermal break in place of internal steel reinforcement, while Aluview Standard supports a maximum sash weight of up to 660 lbs for lighter-duty coastal openings.

Aluview Standard uses narrow aluminum profiles with a frame depth of 4¾” (two-rail system) or 7 13/16″ (three-rail system), a mullion width of 4½” standard or 1⅞” slim, and a maximum sash size of 8’11” high by 10’9″ wide, with a low-threshold option available. Aluview Premium adds triple-glazed sealed units as standard, a multi-track design supporting up to four sliding sashes and two fixed sashes in one frame, a frame depth of 7 3/16″ (two-rail) or 11″ (three-rail), and a maximum sash size of 10’7″ high by 10’9″ wide.

OKNOPLAST US product documentation does not publish a DP rating for Aluview Standard or Aluview Premium at the time of writing, unlike COMPACT and HORIZON, which both carry published DP values. Architects or contractors specifying an aluminum patio door for a DP-rated coastal opening should request project-specific structural test data from OKNOPLAST before finalizing the system for a wind-load-critical application.

• Aluview Premium → Maximum sash weight → up to 880 lbs (manual drive) / 1,540 lbs (automatic drive)
• Aluview Premium → Thermal break → fiberglass-reinforced
• Aluview Premium → Glazing → triple-glazed sealed units, standard
• Aluview Standard → Maximum sash weight → up to 660 lbs
• Aluview Standard → Frame depth → 4¾” (two-rail) / 7 13/16″ (three-rail)

Table 2 – Aluview Standard vs. Aluview Premium

COMPACT vs. HORIZON vs. Aluview: Comparing All Three Systems

COMPACT (DP-50, sliding, six-chamber uPVC) suits standard residential openings up to 157 inches wide. HORIZON (DP 30–60, lift and slide, steel-reinforced uPVC) accommodates openings up to 236 inches wide with a sash area of up to 67 square feet. Aluview Premium (aluminum, fiberglass-reinforced thermal break) accommodates the heaviest single sash – up to 880 lbs on manual hardware – but does not carry a published DP rating for direct comparison against the two uPVC systems.

Table 3 – Full System Comparison

*Tested or calculated values depending on construction type and element dimensions.

Threshold Design and Water Intrusion During Storms

HORIZON’s standard ECO PASS threshold measures 1 inch in height (as low as 0.9 inch in select configurations per OKNOPLAST patio door literature), with an optional ADA-compliant threshold available at ½ inch for veranda and balcony door applications. Wind-driven rain during a storm concentrates at the frame-to-floor transition, making threshold sealing performance as relevant to storm readiness as the door’s rated DP value.

The COMPACT Patio Door uses a standard threshold measuring 2⅝ inches, described in OKNOPLAST product documentation as uPVC welded around the frame for weather resistance and long-term durability. Aluview aluminum patio doors offer the widest range of threshold configurations: the Flatstep threshold on Aluview Premium totals ¾ inch in height for installations where a fully flush threshold cannot be used; the 2-rail and 3-rail standard thresholds on Aluview Premium extend only 3/16 inch above finished floor level while maintaining water tightness; and the Aluview Sky+ standard threshold sits entirely beneath floor level, with an optional streamlined gutter available for rainwater management.

Across the OKNOPLAST US patio door range, an ADA-compliant threshold option meeting a ½-inch height applies to veranda and balcony door configurations – relevant both for accessibility compliance and, in practice, for households evacuating or moving supplies through a patio opening before a storm.

Table 4 – Threshold Options by System

Multi-Point Locking and Hardware Security Under Wind Pressure

The HORIZON Lift and Slide Patio Door offers optional hardware upgraded to RC2 burglary-resistance class, while the COMPACT Patio Door uses a locking mechanism engineered for gentle, complete sash closure against the frame. Hardware integrity at the lock and track directly affects a patio door’s ability to hold its rated DP value under sustained wind pressure, since a partially engaged lock allows the sash to flex or lift under load before the frame itself reaches its structural limit.

RC2 is a European burglary-resistance classification (EN 1627) describing a hardware and frame assembly’s resistance to forced-entry attempts using basic tools; specifying RC2-class hardware on a HORIZON installation adds a security margin relevant to both storm-season vacancy periods and everyday use. On the COMPACT system, specialized fittings allow the sash to slide smoothly on rollers relative to the fixed frame section, and the locking mechanism is designed to draw the sash fully into the frame on closing rather than leaving it in a partially seated position.

Sound Transmission and Noise Performance in Storm-Prone Regions

HORIZON achieves an STC rating of 37 to 40 with an OITC rating of 27 to 34. COMPACT achieves an STC of 35 with an OITC of 28. Both ratings correlate with a tighter perimeter seal, which matters for everyday noise reduction and for wind-driven rain resistance during storms.

STC (Sound Transmission Class) measures resistance to interior, mid-frequency noise sources such as voices and household sound. OITC (Outdoor-Indoor Transmission Class) puts more weight on lower-frequency exterior sources such as traffic, wind, and mechanical equipment, which makes it the more relevant metric for homes near coastal roadways or in higher-wind-noise environments. A higher OITC value on a patio door generally reflects a more complete gasket and multi-chamber seal system – the same construction elements that reduce air infiltration under a DP structural test.

Solar Heat Gain and Glazing Options for Hot-Climate Performance

The COMPACT Patio Door accepts glazing package thicknesses from 15/16 inch to 1 9/16 inches, a range that accommodates Low-E coated glass options designed to reduce solar heat gain – a relevant consideration given that Atlantic hurricane season overlaps directly with peak cooling-load months across Southern and South-Central US climate zones.

Low-E coatings reduce energy permeability through the glazing unit, which lowers interior overheating and cooling demand independent of the door’s structural or storm performance. OKNOPLAST does not publish a single Solar Heat Gain Coefficient (SHGC) figure across all patio door configurations, since SHGC varies by the specific glazing package selected for a project; a contractor or homeowner should confirm the SHGC value for the selected glazing package directly. For reference, the EPA’s ENERGY STAR program sets SHGC thresholds of 0.25 or lower for Southern and South-Central climate zones and 0.40 or lower for North-Central and Northern zones – informational federal benchmarks against which a selected glazing package’s SHGC can be compared.

Lead Time: Ordering Before Hurricane Season Begins

OKNOPLAST patio doors require approximately 8 to 10 weeks from order to delivery in the continental US: 4 to 5 weeks of production plus 4 to 5 weeks of shipping. An order placed after early April may not arrive and be installed before the Atlantic hurricane season begins June 1.

This lead time applies to made-to-measure orders regardless of size or configuration, since each COMPACT, HORIZON, or Aluview unit is produced to the project’s exact dimensions and finish specification rather than pulled from regional stock. Contractors scheduling patio door replacements for coastal properties in Q1 typically work backward from the June 1 start of hurricane season – rather than from a homeowner’s preferred installation date – when confirming an order deadline with their supplier.

Energy Performance and Federal Program Context

Patio doors with U-Factor values in the 0.17 to 0.29 range, such as COMPACT and HORIZON, fall within the general performance range referenced by the EPA’s ENERGY STAR program for door products, though ENERGY STAR certification is a product-specific, EPA-confirmed status that should be verified with a dealer rather than assumed from U-Factor alone.

The federal §25C Energy Efficient Home Improvement Credit is a separate IRS/EPA program. It is not a benefit administered, offered, or included by OKNOPLAST, and it may apply to eligible replacement projects when a product meets NFRC-certified, ENERGY STAR-qualifying performance criteria in the tax year of installation. Homeowners evaluating a patio door replacement ahead of hurricane season should confirm current §25C eligibility criteria directly against IRS Publication 5695 and current EPA ENERGY STAR guidance, since eligibility rules and credit caps are set independently of any single manufacturer.

Post-Storm Inspection, Maintenance, and Documentation

After a named storm passes, patio door tracks should be checked for debris before operating the sash, since COMPACT and HORIZON both rely on specialized roller fittings for smooth sliding – grit or standing water in the track increases wear on the roller and locking hardware and can prevent the lock from fully engaging on the next closing cycle. Threshold seals and weatherstripping should also be inspected for compression set or visible gaps after sustained wind-driven rain exposure, since a compromised seal at the threshold affects both future water-intrusion resistance and the sound-transmission performance documented under STC and OITC testing.

Homeowners in coastal counties should retain the DP rating and U-Factor specification for their installed patio door alongside the installation date and 10-year product guarantee documentation. Many insurers in windstorm-exposed states offer mitigation credits or reduced premiums for documented wind-rated openings; eligibility criteria, required documentation, and available credit amounts are set independently by each insurance provider and should be confirmed directly with the homeowner’s insurer rather than assumed from the door’s DP rating alone.

Contractors working storm-recovery schedules in coastal markets typically photograph the DP rating label on each installed unit before the final walkthrough. It’s a small step, but that label is often the single piece of documentation an adjuster asks for first.
