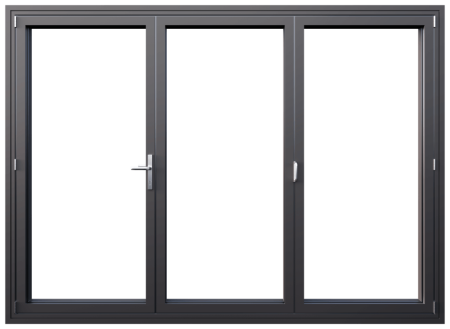

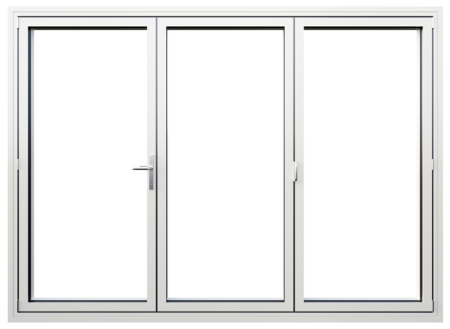

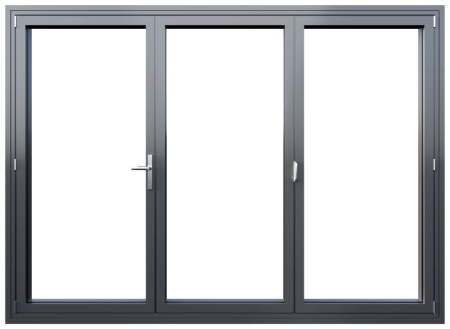

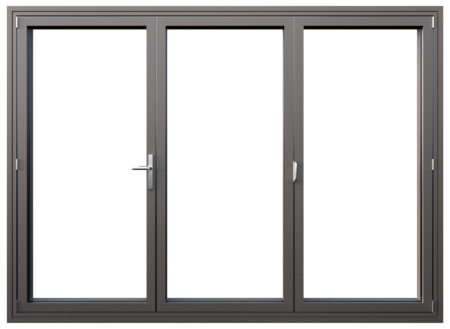

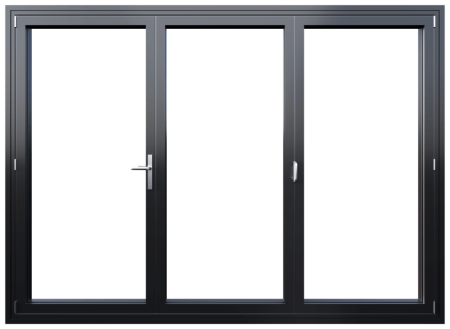

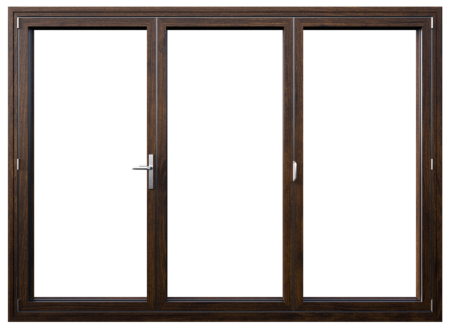

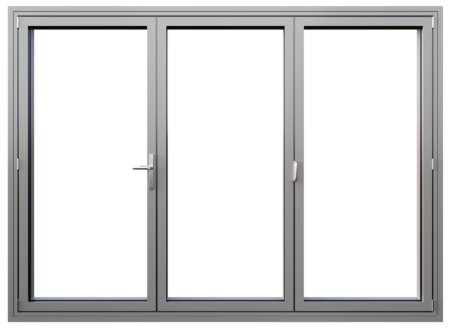

FOLD PATIO DOORS.
Made of aluminum frame and a wide range of infill models made of aluminum, everyone will find a door for their dream home, no matter what style it is designed in. This combination ensures many years of trouble-free use. Stylish appliqués and decorative glass add an elegant touch.
Fold Patio Doors.
Application and functionality

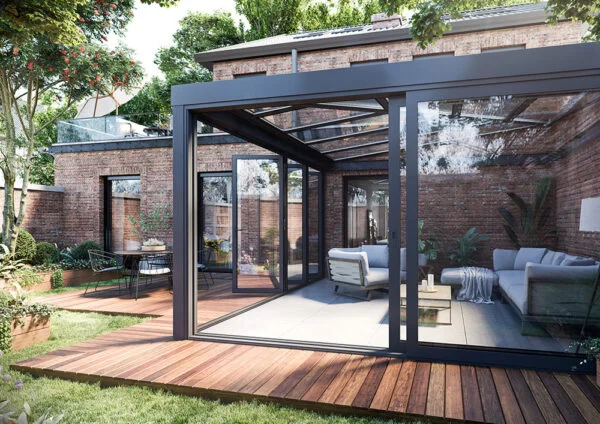

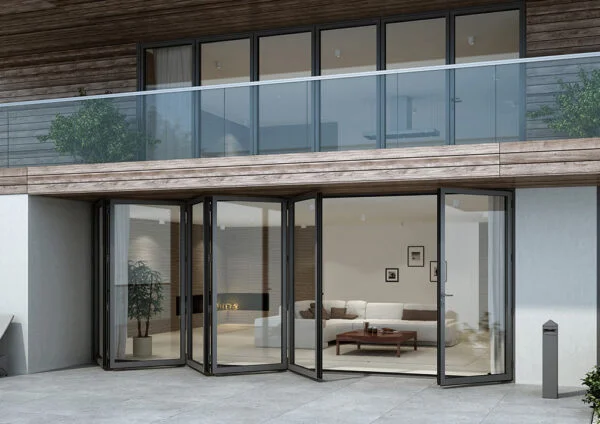

- an exterior folding door gives you a lot of freedom and helps eliminate the barrier between the interior and the environment, providing a perfect, wide passage from the house to the terrace or a passage which joins a café or restaurant with a seasonal outdoor area
- a remarkably convenient solution in everyday use which guarantees high technical parameters and enables the construction of large structures
- can be opened both inwards and outwards, with any sash configuration
- a modern product designed to meet the high demands of users, architects and investors
Structure

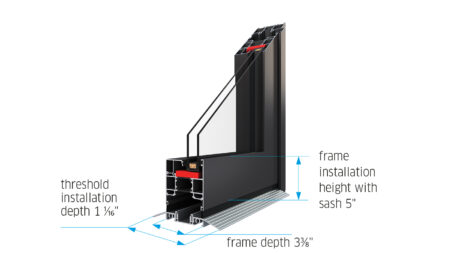

- sturdy 3-chamber aluminium sections with a structural depth of 3.38 inch for frames and 3.03 inch for door leaves
- central section chamber with 0.94 inch wide thermal breaks for frames and 1.33 inch wide thermal breaks for door leaves ensures high thermal insulation properties
- specialist hardware for the comfortable functioning of door leaves with a maximum weight of up to 220lb
- large permissible dimensions for doors enabling door heights up to 106.29 inch and widths up to 39.37 inch
- different versions of threshold solutions: classic
– with swing seal or comfortable to use – with a low threshold
Glazing
- wide range of glazing from 0.55 inch to 2,42 inch, allowing both single and double glazed sealed units to be used,
- optional specialised glazed sealed units with increased sound insulation or burglar resistance
| TECHNICAL PARAMETERS | |
|---|---|
| air permeability | up to class 4, EN 12207 |
| watertightness | up to class 9A (600 Pa), EN 12208 |
| thermal insulation | Ud from 1.5 W/(m²K)* |
| wind load resistance | class C1, EN 12210 |
