Finding the Perfect Window Size for Your Home: Tips and Tricks

Window size decisions run through five distinct frameworks: the IRC minimums, fall protection constraints that work in the opposite direction from egress, structural header requirements, energy code context for large-format glazing, and room-specific proportioning. Each one constrains the design independently. This guide works through all five.

IRC §R310: Egress Minimums – The Legal Floor for Sleeping Rooms

IRC Section R310 (2021 International Residential Code) sets the minimum opening for emergency escape and rescue in every sleeping room, habitable attic, and finished basement. A room without a compliant egress window can’t be legally permitted or marketed as a bedroom – it’s the prerequisite for the room’s legal status, not a recommendation.

The Four Requirements – All Must Pass Simultaneously

All four pass or the window doesn’t qualify. A 36″ × 20″ clear opening gives 36 × 20 = 720 in² = 5.0 ft² – compliant only as a grade-floor opening. The minimums for width (20″) and height (24″) together produce just 3.33 ft², well below the 5.7 ft² threshold. A practical minimum for a standard sleeping room is 24″ × 36″ clear opening (6.0 ft²).

Net Clear Opening: What Inspectors Actually Measure

Net clear opening is the unobstructed space when the window is fully opened in normal operation from the inside. Not the rough opening. Not the glass area. Not the frame dimension on the spec sheet.

Three scenarios routinely cause failures at inspection:

• A replacement window with thicker insulated sashes can shrink the net clear opening below what the original window provided, turning a compliant room into a violation.
• Sizing the window from the rough opening rather than the net clear opening produces a surprise on inspection day.
• A slider where half the sash is fixed contributes only the movable half to the net clear opening calculation.

Request net clear opening dimensions from the manufacturer before ordering any window for a sleeping room. These are published separately from frame size.

Tilt and Turn Windows and Egress

In turn position – fully inward-swinging on a vertical axis – a Tilt and Turn window’s sash swings completely clear of the frame. No rail, no glazing bead, no frame material obstructs the opening. The net clear opening is approximately equal to the glass area. A PAVA sash of 30″ × 30″ provides roughly 6.25 ft² net clear opening in turn position – 10% above the R310 minimum.

A single-hung window of the same nominal size opens only the bottom half. To reach the same 6.25 ft² net clear opening, a single-hung needs a nominal frame of approximately 30″ × 69″.

Per-Bedroom Requirement

IRC §R310.1 requires an emergency escape opening in each sleeping room individually. A compliant window in a hallway or shared space doesn’t satisfy the requirement for bedrooms behind it. Each bedroom needs its own.

Replacement Windows and the Sill Height Exception

IRC §R310.2.5 exempts replacement windows from the 44″ maximum sill height requirement when the window goes into the same rough opening and the new unit meets or exceeds the net clear opening area and dimensions of the original. The exception applies to like-for-like replacement only – not to new openings, enlarged openings, or converting a non-bedroom to a sleeping room.

Below-Grade Sleeping Rooms

When the sill is below exterior grade, IRC §R310.2.3 requires a window well with a minimum horizontal area of 9 ft² and minimum horizontal projection and width of 36″. Wells deeper than 44″ need a permanently affixed ladder or steps – rung spacing not less than 10″ and not more than 18″.

IRC §R303.1: Minimum Glazing Area for All Habitable Rooms

IRC Section R303.1 (2021) covers every habitable room – bedrooms, living rooms, dining rooms, kitchens, home offices. Bathrooms and utility spaces are not habitable rooms under IRC and follow different requirements.

Aggregate glazing in each habitable room must equal at least 8% of the room’s floor area. The openable portion must be at least 4% of floor area for natural ventilation, unless a whole-house mechanical ventilation system per IRC §M1505 is in place.

Glazing Area by Room Size

Multiple windows in the same room contribute to the aggregate total. A 150 ft² bedroom with two 3′ × 3′ windows has 18 ft² of glazing – above the 12 ft² code floor. These are minimums, not targets.

Adjoining Room Credit

Per IRC §R303.2, windows in an adjoining room can count toward a room’s glazing requirement when the common wall between them is at least 50% open and the opening is at least 1/10 of the interior room’s floor area and at least 25 ft² in area. Open-plan kitchens use this credit regularly – the kitchen satisfies R303.1 through the adjacent living space without a window directly in the kitchen wall.

Tilt and Turn Advantage for the 4% Openable Requirement

A Tilt and Turn window in turn position contributes 100% of the operable sash area toward the 4% openable calculation. A single-hung window contributes 50% – only the bottom half moves. A 36″ × 48″ single-hung contributes 6 ft² to the openable total; a 36″ × 48″ Tilt and Turn contributes 12 ft². In a larger room where the 4% ventilation threshold is harder to hit than the 8% glazing minimum, that difference can determine how many windows the project needs.

IRC §R312.2: Fall Protection – When Low Sills Require Guarding

This code section works in the opposite direction from R310’s maximum sill height. Where R310 caps the sill at 44″ to keep it reachable for egress, R312.2 imposes a floor when the sill is low enough and the drop outside is high enough to create a child fall hazard. The U.S. Consumer Product Safety Commission (CPSC) estimates that approximately 5,600 children aged 12 and under were treated in emergency departments in 2024 after falling from windows, with about one in three of those cases requiring hospitalization (cpsc.gov, April 2026). The CPSC’s guidance recommends preventing windows from opening more than 4 inches in homes with young children – the same 4-inch threshold codified in IRC §R312.2.

All three conditions must exist simultaneously for fall protection to apply:

1. The window is operable.
2. The sill is below 24″ above finished floor.
3. The exterior grade is more than 72″ below the sill.

When all three conditions are present, one of the following is required per IRC §R312.2:

• A window opening control device (WOCD) limiting the opening to 4″ maximum.
• A fall prevention device complying with ASTM F 2090.
• A fixed (non-operable) panel at those positions.

Floor-to-ceiling and low-sill windows on upper floors – a standard modern architecture specification – trigger R312.2 on any story where the sill is below 24″ and the exterior drop exceeds 72″. The most common design solution: specify a fixed lower panel with an operable section starting above 24″. The fixed glazing provides the unobstructed view; the operable section above handles ventilation without creating a fall pathway.

For Tilt and Turn windows in tilt mode only, the bottom of the sash stays stationary – it doesn’t open outward and doesn’t create a fall pathway through the lower part of the frame. A tilt-only hardware restriction satisfies R312.2 in many low-sill configurations without requiring a WOCD device on the operable sash.

One more distinction: the International Building Code (IBC), which governs commercial and multi-family construction, sets the minimum operable sill at 36″ above finished floor – 12″ higher than IRC’s 24″. Projects governed by IBC face stricter constraints on low-sill window design.

Rough Opening vs. Window Unit Size: How to Frame for a Custom Window

The rough opening (RO) is the framed hole – bounded by header, jack studs, and rough sill. The window unit is the finished frame that installs inside it. They’re not the same number. An oversized RO is hard to insulate and seal. A tight RO won’t accept the unit.

Standard Tolerance

The rough opening is typically ½” larger than the window unit on each side – about 1″ larger in total width and 1″ in total height. That clearance handles shimming for plumb and level, thermal movement, insulation, and perimeter sealant.

A window unit measuring 35½” × 47½” needs a rough opening of approximately 36½” × 48½”.

Tolerances vary by material and installation method. A generic chart is an approximation – the manufacturer’s installation sheet governs.

 OKNOPLAST Installation Methods and Their RO Implications

OKNOPLAST supports three installation methods, each with different clearance requirements:

Nailing fin: An integrated fin at the frame perimeter anchors the window to the exterior sheathing. Standard US new-construction method. The fin provides a clean connection to the weather-resistive barrier. The rough opening is sized to the window unit with ½” clearance per side.

Fixing clip: Proprietary clips anchor the frame into the surrounding structure at intervals. Used when a nailing fin doesn’t fit – renovations, masonry adjacency, specific wall assemblies. The RO is similar to nailing fin, but anchors sit inside the opening rather than at the sheathing face.

Direct bolt / through-frame dowel: The frame is anchored through-frame directly into the structural surround. The European standard approach; suits concrete, masonry, and thick-wall construction. RO tolerances may differ from the ½” standard – confirm with OKNOPLAST installation drawings for the specific system and wall assembly.

Per OKNOPLAST’s installation documentation: leave at least 1 inch of total space (½ inch per side) outside the frame. For Tilt and Turn windows, the exposed hinges need that clearance to operate without obstruction when the sash swings fully open.

The Custom-Made Sequence

OKNOPLAST windows are made-to-measure. The correct sequence:

1. Determine the rough opening from structural plans or field measurement.
2. Verify the opening is plumb, level, and square – diagonals at both corners should match within ¼”. A racked opening needs re-framing before the order goes in.
3. Specify the window unit to fit that rough opening, applying the manufacturer’s installation tolerance.
4. OKNOPLAST provides installation drawings with each order – those drawings govern the tolerances for the specific unit and method ordered.

Verify rough opening dimensions in the field before placing the order. Once production begins, changes require restarting the manufacturing sequence and the 8-10 week lead time starts over.

Measurement Technique for Tilt and Turn Windows

OKNOPLAST’s documentation specifies a brick-to-brick aperture measurement for Tilt and Turn windows to account for the multi-chamber uPVC frame correctly. Take three width measurements (head, mid-frame, sill) and three height measurements (left jamb, center, right jamb). Use the smallest in each direction. Diagonals differing by more than ¼” mean the opening is out of square – assess and correct before ordering.

Window Width and Structural Header Requirements

Every opening in a load-bearing wall needs a structural header – a horizontal beam that carries wall and roof loads around the window. Header size depends on the span, the load from above, and the wall construction, per IRC Table R602.7 and local amendments.

The Span-to-Header Relationship

Wider window means deeper header. Depth increases in discrete jumps as load conditions change:

These are guidance values, not prescriptive code minimums. Actual header size depends on span, lumber species and grade, building width, and number of floors above. Confirm against IRC Table R602.7, and engage a structural engineer for any opening exceeding 8 feet in a load-bearing wall.

Jack Studs and King Studs

The header bears on jack studs (trimmer studs), which sit inside king studs running full height from plate to plate. Jack stud count per side increases with span and load:

• Up to approximately 6 feet: one jack stud per side is sufficient for many load conditions.
• Over 6 feet: two per side is the common minimum – but required count depends on span, building width, and load. Confirm against IRC Table R602.7.

Cripple studs fill the space between the top of the header and the top plate when the header doesn’t reach the plate.

Non-Load-Bearing Walls

In non-load-bearing walls, IRC §R602.7.4 permits a single flat 2×4 for openings up to 8 feet – no engineered header sizing required. Large windows go on non-load-bearing walls wherever the layout allows, for exactly this reason.

OKNOPLAST Windows and Header Sizing

PAVA at maximum sash width (56″) produces a structural opening approaching 5 feet, typically needing a doubled 2×8 or 2×10 in a load-bearing wall. Multi-unit configurations with combined widths above 8 feet enter LVL territory. MIRU EVO Standard at maximum width (5’3″) sits in the same range.

Floor-to-ceiling window configurations in new construction – openings running 9′-10′ in height – are usually engineered from the design stage, with the header integrated into the floor or roof framing. That’s a different structural problem from enlarging an existing window in a finished wall.

Enlarging an Existing Opening

Adding a larger OKNOPLAST unit to an existing wall in a load-bearing assembly requires:

1. Temporary support walls on both sides before any framing is cut.
2. Header upgrade to match the new span.
3. Additional jack studs if the upgraded header spans beyond what the original layout supports.
4. A permit and structural inspection in most jurisdictions.

A widening from 3 feet to 6 feet typically moves the header from a doubled 2×6 to a doubled 2×10 or 2×12. The header gets replaced, not extended.

Energy Code, Window-to-Wall Ratio, and Passive Solar Sizing

Windows account for 25-30% of residential heating and cooling energy use, per the U.S. Department of Energy. That proportion makes fenestration specification one of the highest-impact envelope decisions in any residential project – which is why energy codes govern window performance through U-Factor and SHGC thresholds rather than leaving it unaddressed.

IECC 2021 Residential: No WWR Cap – U-Factor Does the Work

IECC 2021’s residential prescriptive path (Table R402.1.2) doesn’t set a maximum window-to-wall ratio for one- and two-family homes. U-Factor and SHGC thresholds per climate zone do the constraining: as glazing area grows, the energy performance requirement for each unit tightens rather than the area itself getting capped.

The commercial IECC (Section C402.4.1) caps vertical fenestration at 30% of gross above-grade wall area on the prescriptive path, rising to 40% under the component performance alternative. Those limits don’t apply to residential.

IECC 2021 Table R402.1.2 – Maximum Fenestration U-Factor by Climate Zone:

Source: IECC 2021, Table R402.1.2 (ICC); verified against DOE Pacific Northwest National Laboratory fenestration U-Factor table (basc.pnnl.gov). NR = No Requirement.

PAVA’s U-Factor range of 0.14-0.26 BTU/hr·ft²·°F meets IECC 2021’s prescriptive maximum across every US climate zone – the most stringent residential requirement is 0.30 in CZ 3-8, and PAVA’s upper limit of 0.26 stays below it. ENERGY STAR v7.0 (EPA, energystar.gov) imposes tighter thresholds: Northern zone (roughly CZ 5-8) ≤ 0.22, Most Efficient ≤ 0.20. PAVA meets ENERGY STAR Northern zone requirements across most of its glazing range – confirm the specific glazing package and current certification status with OKNOPLAST US.

Passive Solar Window Sizing

Projects using south-facing glazing deliberately for passive solar heating should follow DOE Energy Saver guidance (energy.gov/energysaver/passive-solar-home-design). According to DOE, south-facing windows should face within 30 degrees of true south and remain unshaded from 9 a.m. to 3 p.m. during the heating season. Glazing ratios:

• Sun-tempered (no thermal mass): south-facing glazing at 7% or less of total conditioned floor area.
• Direct-gain passive solar (with thermal mass): 7%-12% of conditioned floor area in south-facing glazing, paired with 3-6 ft² of 4″-thick masonry thermal mass per square foot of glazing above 7%.
• East and west glazing: below 5% of floor area to avoid overheating from low-angle morning and afternoon sun.

For a 2,000 ft² home, the direct-gain target is 140-240 ft² of south-facing glazing. At PAVA’s maximum sash area of 24.2 ft², that’s 6-10 sashes on the south wall.

Overhang Depth for South-Facing Windows

South-facing glazing needs seasonal shading: admit winter sun (low angle), block summer sun (high angle). Overhang depth is latitude-dependent. At 40° latitude (New Jersey, Colorado, northern California), the overhang factor is approximately 0.29 per JLC overhang design research. Multiply the vertical distance from the window sill to the bottom of the overhang by 0.29 to get the required projection depth. A sill 5.5 feet below the eave at 40° latitude needs an overhang of 5.5 × 0.29 = 1.6 feet – enough to shade the glass in summer while admitting full winter sun.

Room-by-Room Sizing: Practical Guidelines

These guidelines assume R310 egress, R303.1 glazing, and R312.2 fall protection have already been confirmed.

Bedrooms

8% glazing minimum, egress-compliant opening in the bedroom itself – not a hallway window serving it. Sill heights of 24″-36″ work for most furniture arrangements: high enough for headboard clearance, low enough for views from a reclined position. A sill below 24″ on an upper floor triggers R312.2. A sill above 44″ gives up egress qualification for that unit.

Aligning window head height with standard door height (80″-84″) maintains visual consistency across the room. A bedroom with a 24″ sill and 80″ head has a 56″-tall window – at PAVA’s 56″ maximum width, that sash is nearly square.

Design target: 10%-15% of floor area for adequate daylighting without overheating on east and west walls. For a 150 ft² bedroom, 10% = 15 ft², achievable with a single 3′ × 5′ window. East-facing windows wider than 3 feet without operable shading produce early-morning glare directly onto beds – keep them narrower or plan for interior shading.

Living Rooms and Great Rooms

No egress requirement unless the room is the only escape path from a sleeping area. IRC §R303.1’s 8% minimum still applies.

Sill heights of 12″-18″ work for ground-level views to a deck, patio, or garden. At 24″-36″, a sofa fits comfortably against the window wall. On upper floors with sills below 24″, fix the lower panel and make the operable section start above 24″ – the fixed glazing gives the view, the upper section handles ventilation without triggering R312.2.

For south-facing glazing in Climate Zones 4-8, a 400 ft² living room at 18% south-wall glazing = 72 ft², achievable with three PAVA sashes at maximum size (3 × 24.2 ft² = 72.6 ft²). Plan the overhang accordingly.

Kitchens

Sill height of 40″-42″ for windows above a standard 36″ counter with a 4″-6″ backsplash. Taller counters or thicker stone surfaces push that to 42″-44″. Window widths align with cabinet module increments – 24″, 27″, 30″, 33″, 36″ – to keep reveals consistent between frame edge and adjacent cabinet face.

Ventilation is the functional priority in kitchens. A 36″ × 24″ operable window at 42″ sill provides approximately 6 ft² of openable area in turn position. For a 180 ft² kitchen, the 4% ventilation minimum is 7.2 ft² – a 36″ × 36″ Tilt and Turn window handles both the glazing and ventilation requirements in one unit.

If the kitchen is open to a dining or living area, the adjacent space’s windows can credit toward the kitchen’s 8% glazing requirement per IRC §R303.2, provided the opening between rooms is at least 50% of the common wall area and at least 1/10 of the kitchen’s floor area (minimum 25 ft²).

Bathrooms

Bathrooms aren’t habitable rooms under IRC – R303.1’s 8% minimum doesn’t apply. IRC §R303.3 requires either a window of at least 3 ft² glazing or a mechanical exhaust fan (typically specified as 50 CFM minimum by most jurisdictions).

High sills at 60″-66″ – above standing eye level – keep privacy while still admitting natural light. In walk-in showers, a clerestory strip above 60″ from the shower pan provides light with no privacy issue. Frosted or obscure glass allows lower sill heights without sacrificing privacy.

Home Offices and Studios

Glare is the constraint, not daylighting. North-facing windows provide consistent, diffuse light with zero direct sun at any season in the Northern Hemisphere. If north exposure isn’t available, position windows to the left or right of the primary work surface – not directly in front of or behind the monitor.

A 24″-30″ wide × 60″-72″ tall window to one side of the desk position handles task lighting well. At east or west exposures without that option, a fixed panel with exterior shading – deep sill projection, exterior blind, or adjacent wall fin – manages low-angle morning or afternoon sun. Head height of 78″-84″ keeps the window within the visual field from a seated position.

Custom vs. Standard Sizing: What OKNOPLAST’s Made-to-Measure Model Means in Practice

Standard window sizing works for commodity windows manufactured in fixed nominal dimensions – 3/0 × 4/0 (36″ × 48″), 3/0 × 5/0, and similar increments. New construction and simple replacement projects sized to these grids benefit from lower unit costs and immediate distributor availability.

OKNOPLAST doesn’t operate on a standard size grid. Every unit is manufactured to the specifications submitted at order. The factory near Kraków produces to specification across all 2.3 million units per year of capacity. The manufacturing sequence is identical whether the dimensions are 36″ × 48″ or 33⅞” × 55¼”.

What This Means for Renovation Projects

Older American construction – particularly pre-1980 homes – frequently has rough openings that don’t match any modern standard size. A 1960s ranch may have openings at 31½” × 53¾”. Standard replacement windows require either a rough opening modification (costly, permit-required, disruptive) or adapter frames that reduce the net opening and add a thermal bridge at the perimeter.

OKNOPLAST manufactures to the existing rough opening. There’s no premium for non-standard dimensions. The only hard constraints are PAVA’s maximum sash (56″ × 102½”) and MIRU EVO Standard’s maximum (5’3″ × 9’6⅕”). Anything within those limits ships as a standard order.

Cost Structure Differences

Standard commodity windows cost less per unit and ship from stock immediately, but the project pays when the rough opening doesn’t match – framing modifications, adapter frames, or compromised glazing area.

OKNOPLAST’s unit cost is higher than entry-level domestic windows, and the 8-10 week lead time is longer. For projects with multiple non-standard openings, the total cost comparison narrows considerably once framing modifications and adapter frame costs are factored into the commodity window side.

Installation Method Selection

Warranty validity depends on selecting and correctly executing one of OKNOPLAST’s three supported installation methods. Confirm which method applies to the wall assembly before finalizing the rough opening and placing the order – the method affects the clearance tolerance, the anchor spacing, and the flashing detail.

OKNOPLAST Tilt and Turn Windows: Dimensional Range and Performance

PAVA – uPVC Tilt and Turn

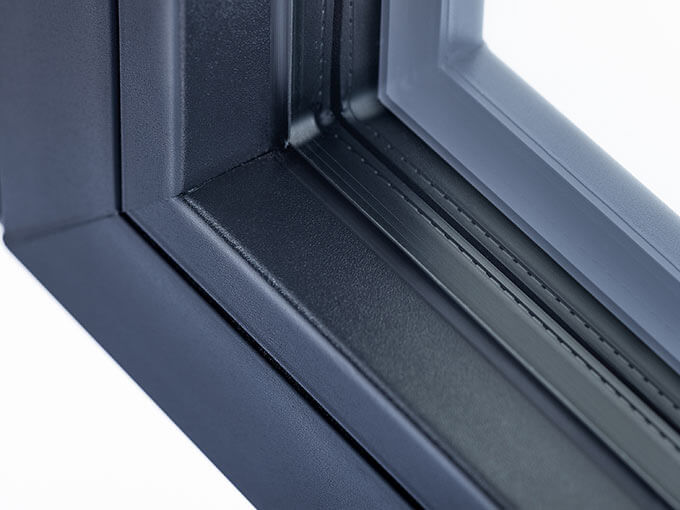

PAVA’s STV (Static/Dry Glazing) technology bonds the glass unit to the sash through a dry gasket rather than wet-set glazing compound. Structural load transfers directly from the glass to the profile, which allows larger glass formats within the same frame depth while keeping the central gasket seated consistently under thermal cycling. At maximum sash area (24.2 ft²), a single PAVA sash satisfies IRC §R303.1’s 8% glazing minimum for rooms up to 302 ft².

PIXEL – uPVC Tilt and Turn, Slim Profile

PIXEL reaches the same maximum sash dimensions as PAVA on a slimmer frame. The reduced chamber count yields a slightly higher U-Factor at equivalent glazing packages. With laminated glazing, PIXEL achieves STC 47 – the highest acoustic rating in the OKNOPLAST US lineup. It’s the specification for urban sites, high-traffic streets, and any project where sound transmission through the window dominates the spec.

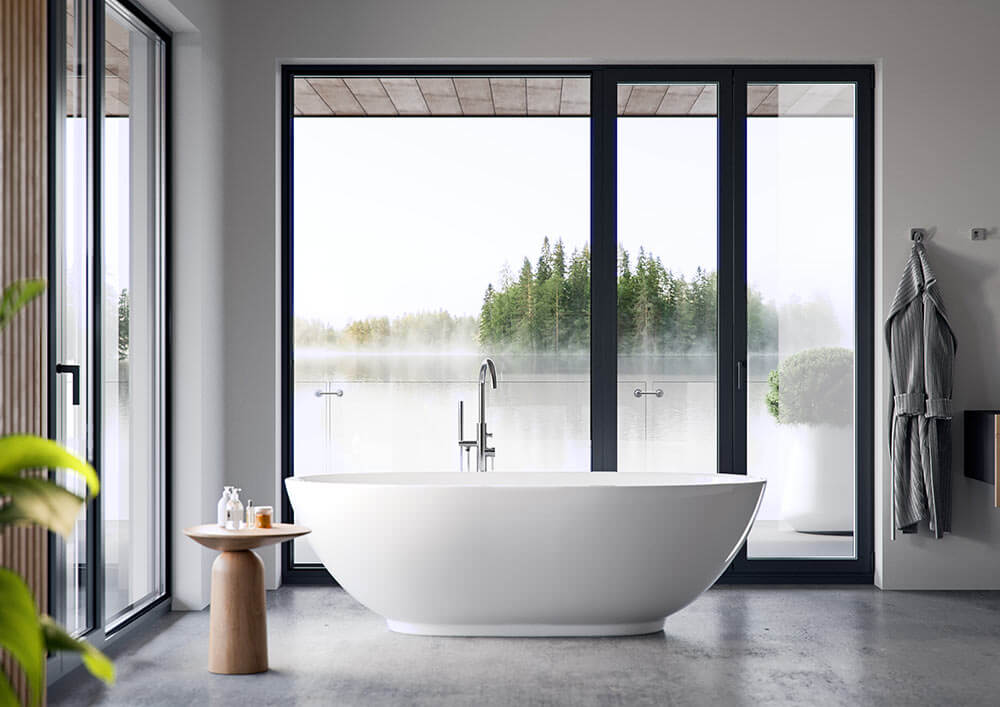

MIRU EVO Standard – Aluminum Tilt and Turn

MIRU EVO Standard reaches 9’6⅕” – greater sash height than PAVA’s 8’6½” – covering floor-to-ceiling applications in standard 9′ and 9’6″ ceiling heights. For projects with ceiling heights at or above 10′, confirm maximum sash dimensions with OKNOPLAST US before ordering. The third seal in the frame assembly improves both air tightness and thermal performance over standard two-seal configurations.
